Pan/Crop

Transforms (i.e. zooming in, cropping, rotating...) in Vegas Pro.

The Pan/Crop Menu

The Pan/Crop Menu can be found on the bottom right corner of all clips. In older versions of Vegas Pro it's at the top right. If you don't see the clip menu, zoom in.

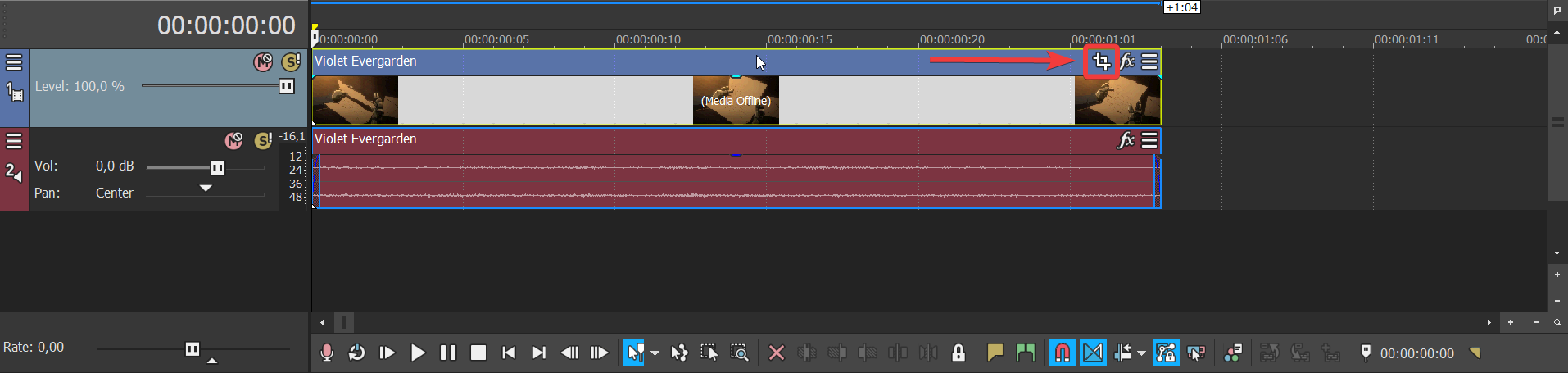

Pan/Crop button location
Pan/Crop button location

The Pan/Crop menu lets you transform your clip. The project preview will update as you make changes. Notice that you can move the playhead while the Pan/Crop window is open, so the preview might not show the same frame as the Pan/Crop menu. If you want to sync the preview and the Pan/Crop menu, click on syncCursor icon at the bottom of the Pan/Crop window.

A quick preview of the Pan/Crop Menu

Additional controls

The Pan/Crop window also has numerical controls available for precise adjustments.

You may also want to disable Lock Aspect Ratio and Size About Center for freer controls. You can also hold ctrl and / or alt to momentarily unlock the aspect ratio and size from center.

Transform property fields
Transform property fields
Lock aspect ratio and size from center
Lock aspect ratio and size from center

Animating

The Pan/Crop menu allows you to animate the transform. Vegas will automatically insert keyframes and interpolate between them when you make changes. If you want to stop the interpolation (animation between keyframes) right click and select the Hold option. This will make each keyframe hold it's value until the next keyframe. To disable animation completely, remove all but one keyframe. Vegas will not let you remove all keyframes.

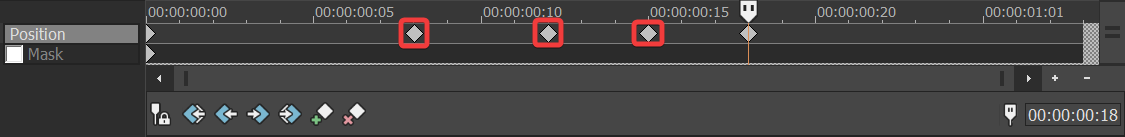

Keyframes at the bottom of the Pan/Crop window
Keyframes at the bottom of the Pan/Crop window

Here's an example of how animating a transform looks in Vegas Pro:

Pan/Crop animation example
Resulting animation
